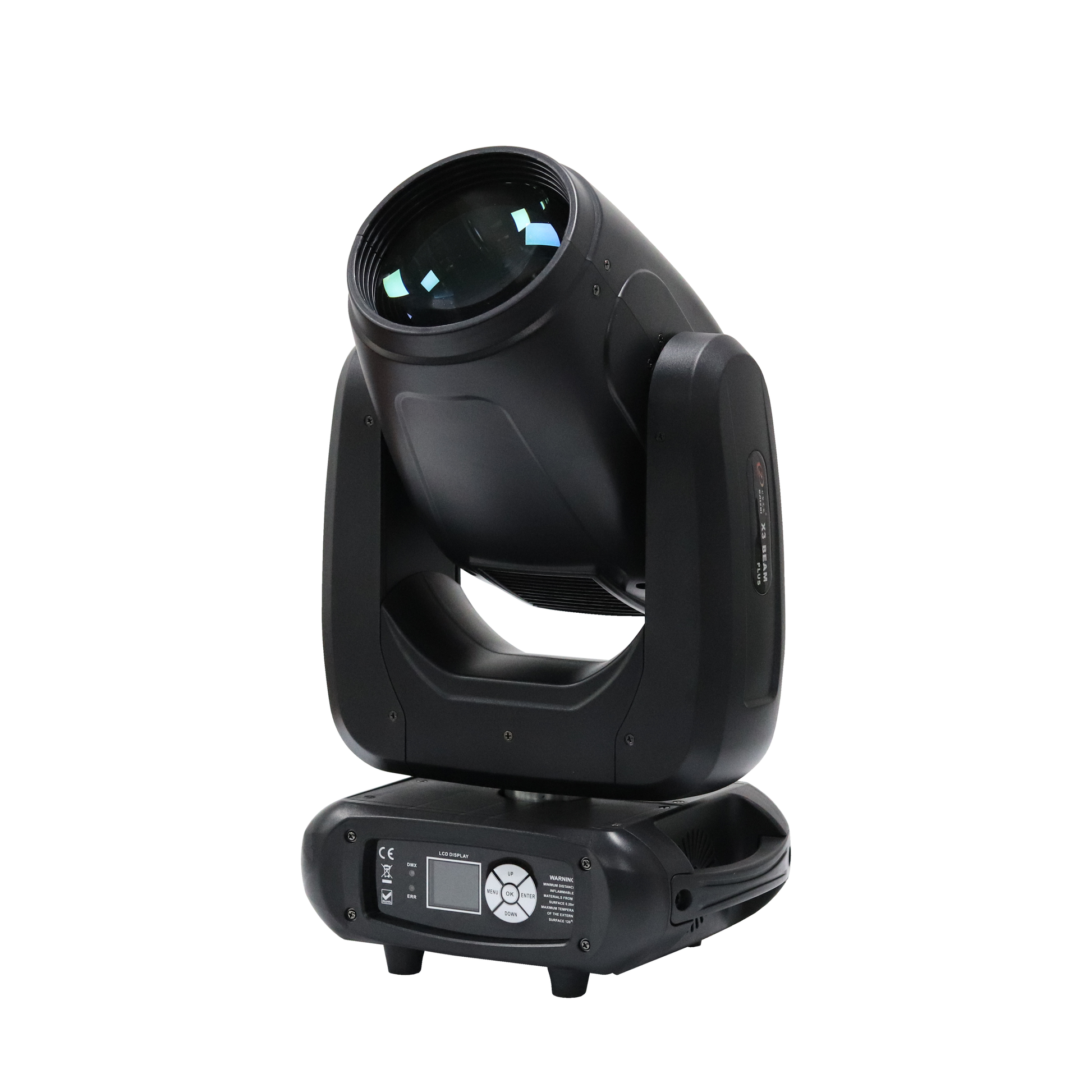

X3S Beam Moving Head Light for entertainment events

X3S BEAM  is an upgraded moving head beam light with high luminous efficiency, small size, fast rotation speed and precise positioning. The case shell is designed with beautiful outline; the double-layer optical lens with high light effect is used to make the beam effect full, straight and bright; the noiseless three-phase motor is used for fast response and accurate positioning; the double prism (8 linear and 8 circle prism. 48 flower prism optinal) + seven color beam effect can be superimposed and flexibly used to make the whole event effect  more beautiful.

Technical parameters:
Input voltage: AC100-240V 50 / 60Hz
Rated power: 400W
Light source:   250W lamp
Color temperature: 8000K
Bulb life: 2000 hours
Control mode: Standard 512 DMX protocol, RDM control by 3 pin and 5 pin DMX interface
Channel: 15 channels / 18channels
Rotation angle: horizontal 540 °, vertical 270 °
(16bit precision scanning) electronic error correction
Operation speed: horizontal 2.5 seconds, vertical 1.4 seconds
Co wheel: 1 color wheel with 13 colors(3 glass gobo) + white, with half color effect function
Gobo wheel: 13 fixed gobo (3 glass gobo) + white.
Prism: 8-facet linear prism and a flower prism(i.e. 48 prism), the prism rotates and can be stacked
Frost: soft wash effect
Colorful wheel: when the prism is turn on, the superposition of seven color beams is beautiful
Strobe: two piece stroboscopic 0-13 times / second, adjustable speed dimming: 0-100% linear dimming
Focus: 0-100% linear focus
Light beam angle:0-3 °   parallel beam/0-40 °  wash beam/0-45°   prism beam
Display mode: LCD
USB interface: Put 5V voltage to the screen for adjust the dmx address. Working environment: 0-40 ° C
Protection grade: IP20
Cooling: adopt axial fan to strengthen ventilation and cooling
Safety device: with temperature control overheat protection, temperature control automatic power-off protection in case of overheat system failure
Net weight: 13.8kg
Gross weight: 15kg
