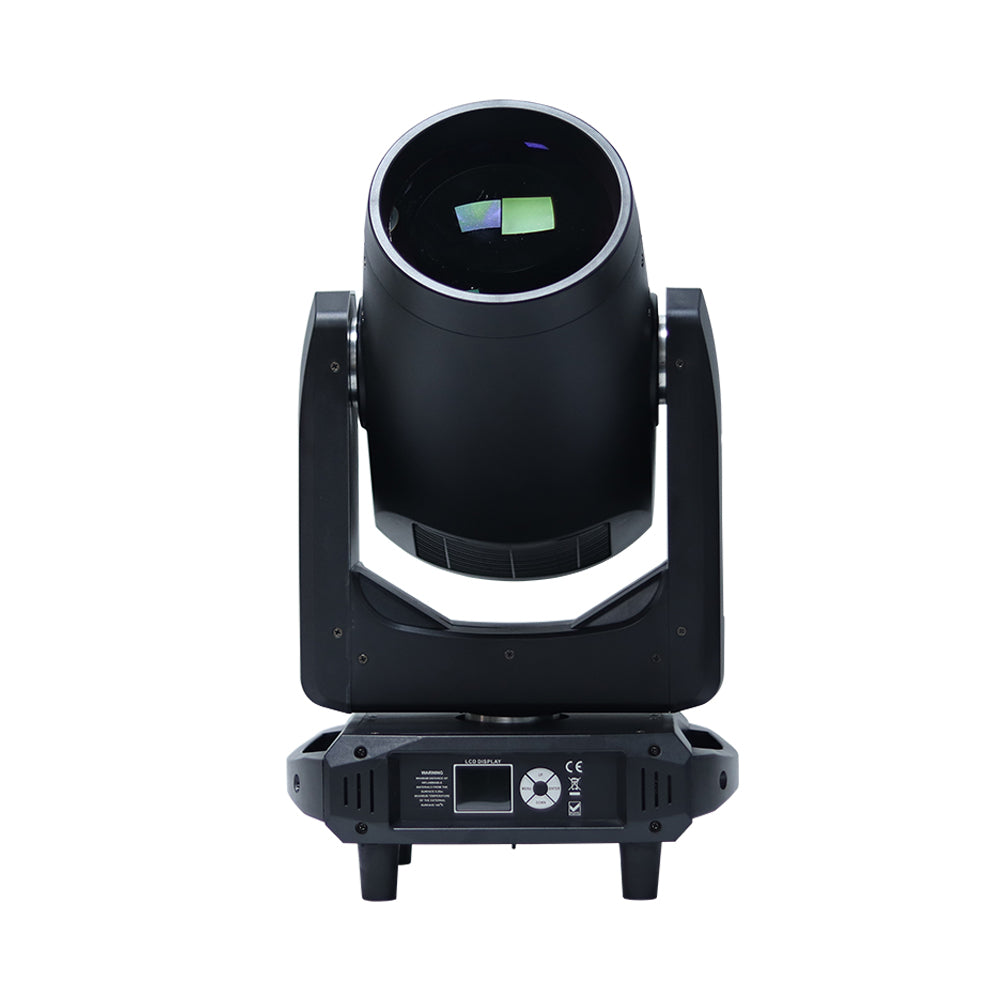

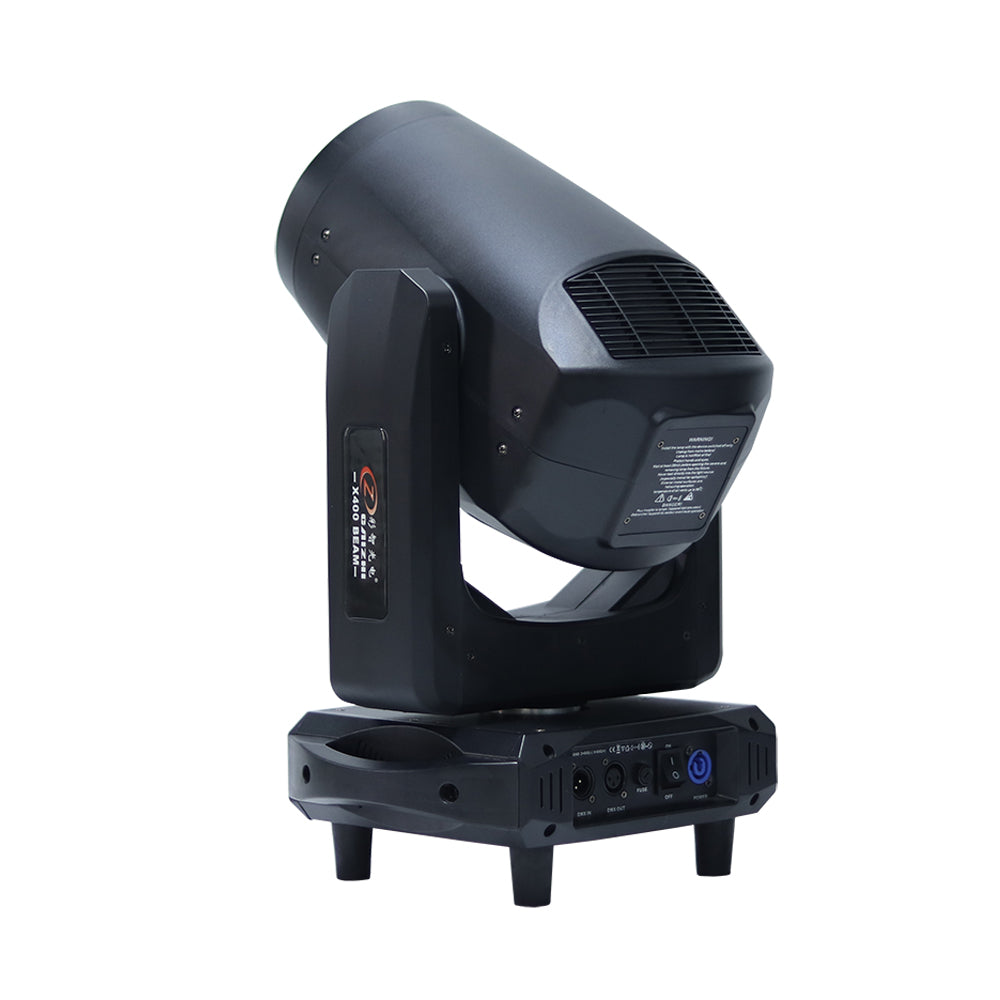

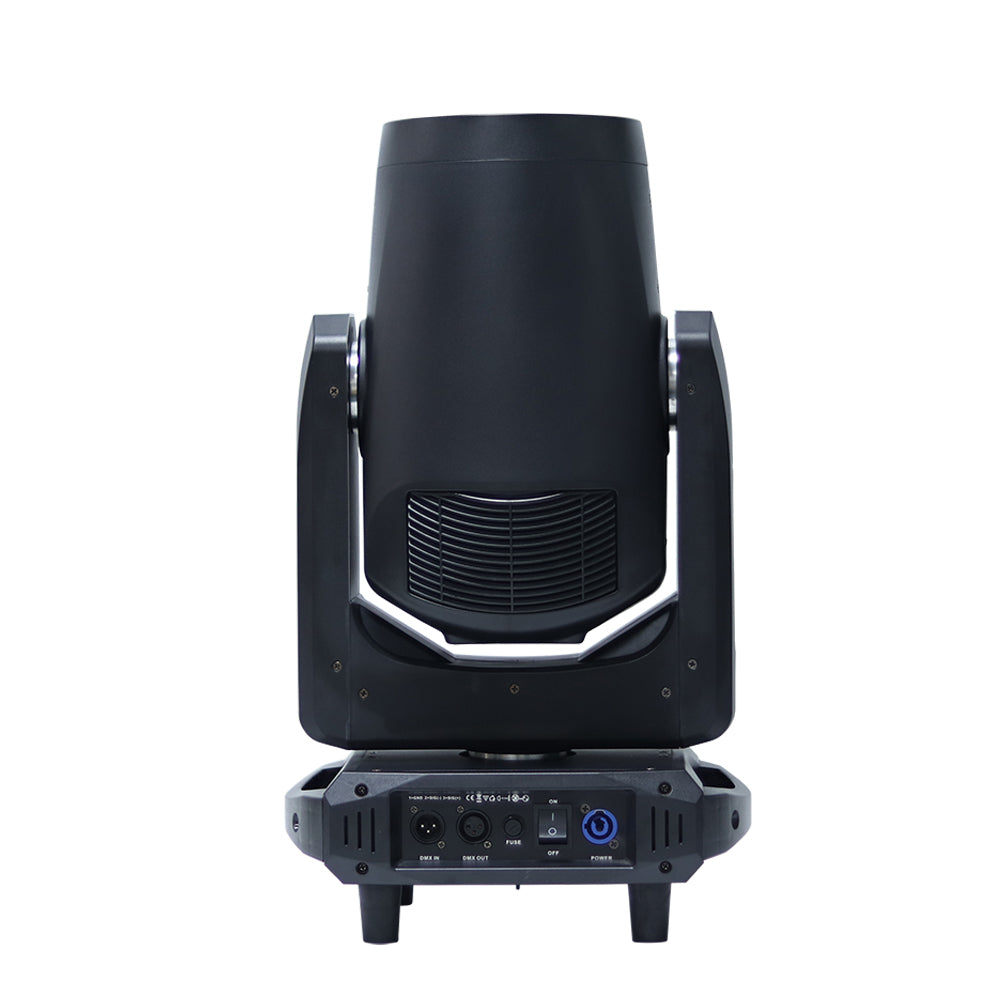

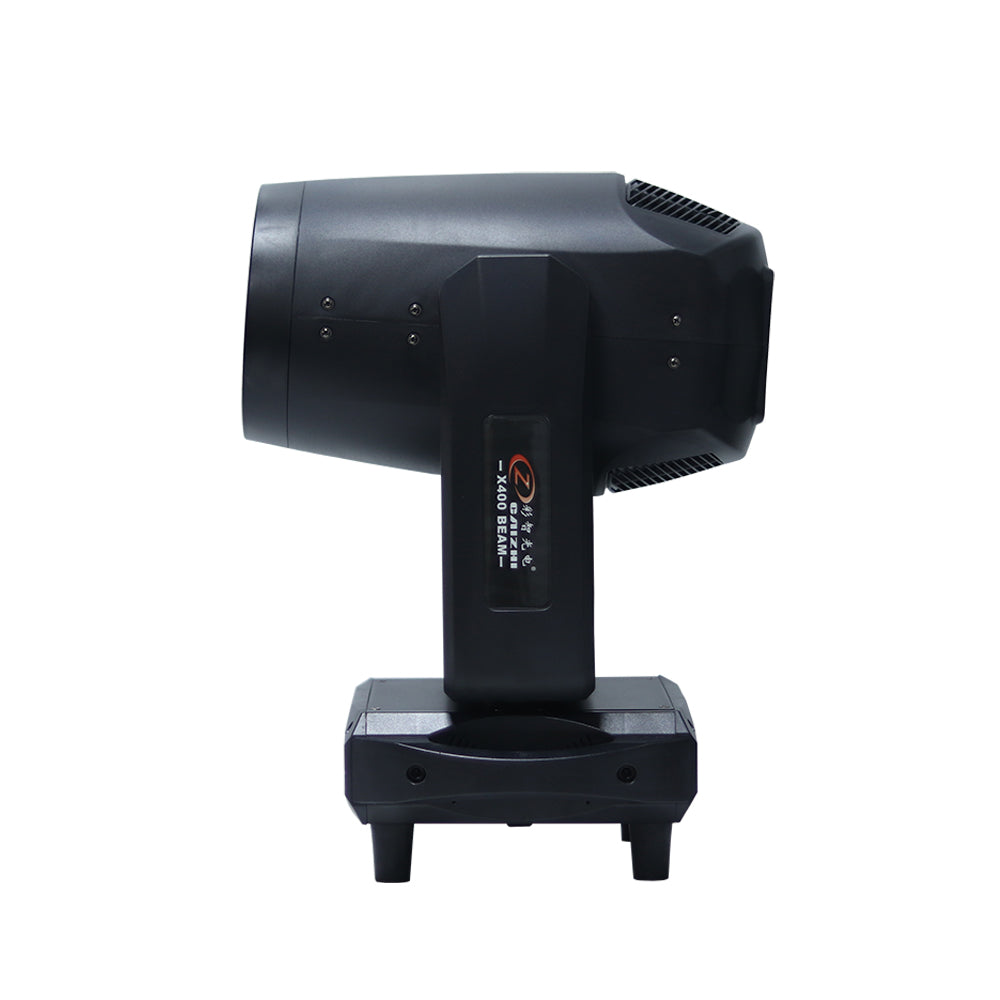

X400 Beam Moving head light

X400 Beam is an upgraded powerful Moving Head Beam. The case shell is designed with beautiful outline; the double-layer optical lens with high light effect is used to make the beam effect full, straight and bright; the noiseless three-phase motor is used for fast response and accurate positioning; the double prism (8 linear and16 circle prism. 48 flower prism optinal) + seven color beam effect can be superimposed and flexibly used to make the whole event effect more beautiful.

Feature
High brightness of professional Osram 380W/420W  lamp
Bright sharpy beam 265000 Lux @ 20 meter
Beam angle is 2 °
colorful raibown beam effect

Technical Parameter
Optical system
Light source:  professional Osram 371W/421W  lamp
Light source life:  ≥ 3000h
Color temperature: 8500K

Electrical system
Input voltage: AC100-240V, 50 / 60Hz
Rated power: 500W
Power: powercon input / output
DMX: 3-pin DMX connector input / output

Control
Channel mode: 15/20 channels
Control protocol: DMX512, RDM bidirectional data
transmission, remote software upgrade
Operation mode: DMX512 , Master-slave, Auto run
Display screen: TFT screen, can be inverted 180 ° display

Effect/Function
Movement angle: Pan 540 °, Tilt  270 ° 16 bit precision scanning
Color: 12 colors + white, and with 6-colorfuls wheel
Gobo: 17 gobo+ white
Prisms: 8-facet prism and 16 facet prism, two prism can be mixed
Correction: automatic return correction and 16bit precision fine adjustment function, using digital wave shape correction technology, to ensure accurate positioning of Pan and Tilt,  it does not shake after high-speed operation and reset
Focusing angle: 2 °
Dimming: 0-100% linear dimming
Strobe: 1-25 t/s

Cooling system
Cooling system: fan cooling structure and temperature intelligent temperature control monitoring technology, automatically adjust the cooling system, and effectively control the lamp temperature

Appearance
Materials: high temperature resistant fireproof plastic + molded alloy material
Working environment: - 20 ℃ - 40 ℃
Protection grade: IP20
Net weight: 15.4kg
Lamp size: 324x238×515mm
